PSxHub S10

Economically reduce set-up times with intelligent PSxHub for positioning systems

Overview
Technical data
Downloads
Images

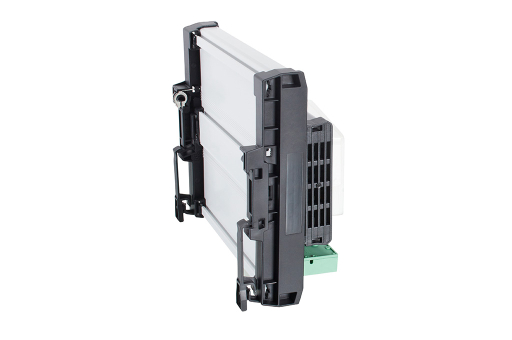

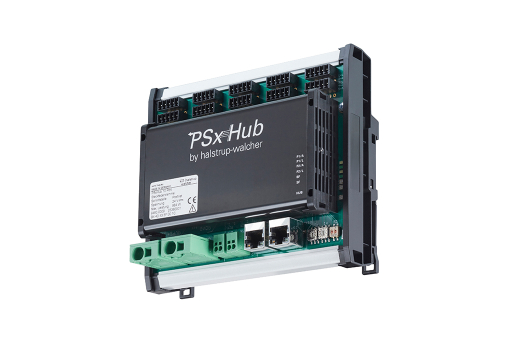

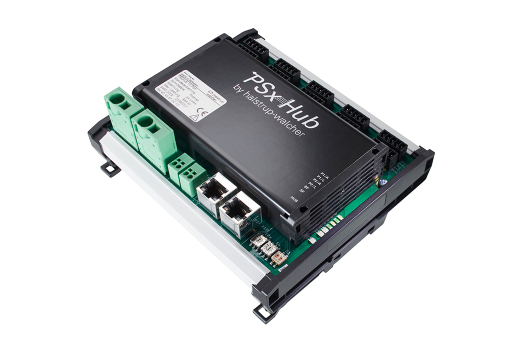

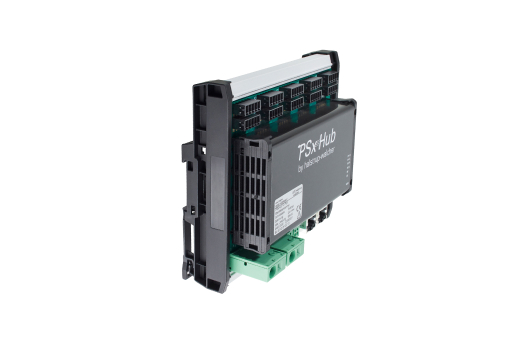

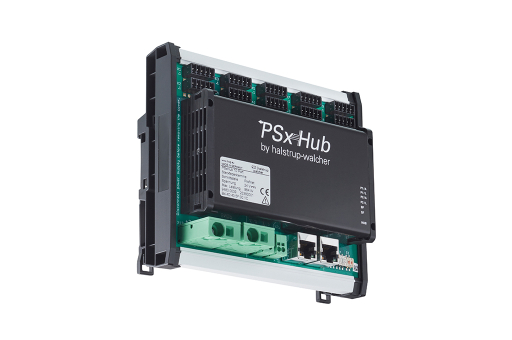

The intelligent PSxHub is available to implement the parallel operation of positioning systems for format adjustment as efficiently as possible. The intelligent PSxHub to implement the parallel operation of positioning systems for format adjustment as efficiently as possible: As an active bus component, the smart connection element offers simple integration for up to 10 positioning systems from the PSx series (PSx 3xx with IO-Link) and PSD series (PSD 4xx with IO-Link), ensures smooth communication with the controller and is economical thanks to the single-cable solution with unshielded, standard A-coded cables, among other things. The flexibly configurable synchronization control and monitoring integrated in the PSxHub ensures synchronized parallel operation of the controlled positioning systems. As a flexible technology platform, the PSxHub enables a wider performance spectrum (e.g. in terms of power requirements and synchronization) compared to classic IO-Link hubs without a control function. With its compact housing design from 14.2 x 16.4 x 6.4 cm (control cabinet version), it is an efficient and space-saving solution for central data and power transmission. The PSxHub is available for the Industrial Ethernet systems PROFINET and EtherCAT (others on request).

Your advantages with the PSxHub:

  • Simplified and cost-effective cabling
  • Reduced effort for installation and initial start-up
  • No tilting during parallel operation of several positioning systems thanks to optimum synchronization control in the hub
  • Relief for the control system and machine bus
  • Simple self-diagnosis and identification of the drives in the machine environment
  • Fixed configuration of the hub enables simple modularization of machine components
Interface / bus communication

EtherCAT, PROFINET

Power supply
24 VDC
Protection class

IP 20

Data sheets with technical drawing

Matching accessories
