Positioning systems
Flexible positioning system construction kit with various bus interfaces, IP protection class for automatic format adjustment in machines
Are you looking for the right positioning systems for your machine? With our positioning system construction kit of the PSx 3 family, you are flexible in adapting to different areas of application, but have the same basis for the mounting dimensions, installation space and control. You select the appropriate IP protection class and design and can also combine them within the machine. This gives you flexibility when mounting and installing the units. You choose the bus communication specified by your customer and do not have to rework the control system. And we also offer various solutions for the cabling to enable the best possible integration into the machine control system.
Advantages of the PSE/PSW 3xx positioning systems
- Optimum integration into various machines: mechanically, electrically and software-wise
- Continuous development of the product family (e.g. new STO partial safety function)
- Low-maintenance: long-life, energy-efficient EC motor, gearbox, absolute measuring system without battery
- Flexible: various customised versions possible
- Reliable: German manufacturer and partner of various global players in mechanical engineering
- Easy to combine: further product family for format adjustment with comparable design

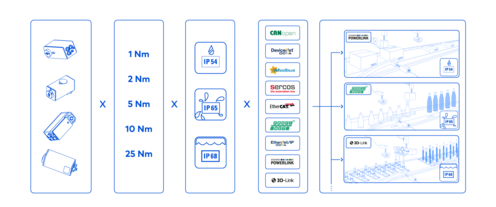

Modular positioning systems PSE/PSW
- 4 different types: Horizontal and vertical construction with different hollow shafts
- 10 different data interfaces for bus communication with the control system: CANopen, PROFIBUS DP, DeviceNet, Modbus RTU, Sercos, EtherCAT, PROFINET, EtherNet/IP, POWERLINK, IO-Link
- Performance data: from 1 Nm to 25 Nm nominal torque
- Output shafts for easy mounting, e.g. on spindles: 8/14 mm hollow and solid shafts possible
- 3 different IP protection classes: IP54, IP65 and IP68
- The stainless steel version PSW meets hygiene requirements
- Choose from certification options: CE, UKCA, NRTL and STO partial safety function
- Optionally with integrated snap-in brake
- Optionally with jog key connections for operating without a control system
Flexible wiring of our positioning systems
Direct cabling or indirect via hub/gateway. Find out which method is suitable for your application.
Our positioning systems of the 3-series
Did you not find any products with your specification? No problem, Send us a product request.
Repair request
Send us a request of your selected products with the associated specifications.
Predictive Maintenance
Use the condition monitoring of our positioning systems for the optimum availability of your machine.
Our positioning systems are used in the following industries
Every customer has specific requirements in the industry in which they operate.
Find out what is important in the different application examples of our reference customers:
Our engineering
Are you looking for a custom-fit solution, additional component or software solution? Discover our customised solutions.
