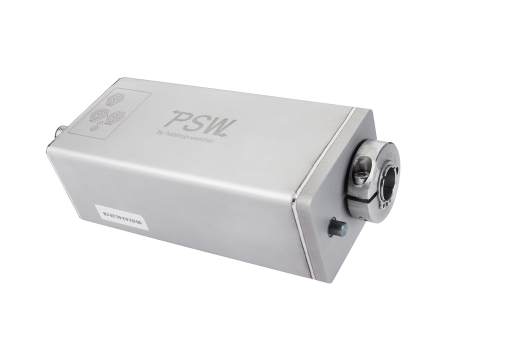

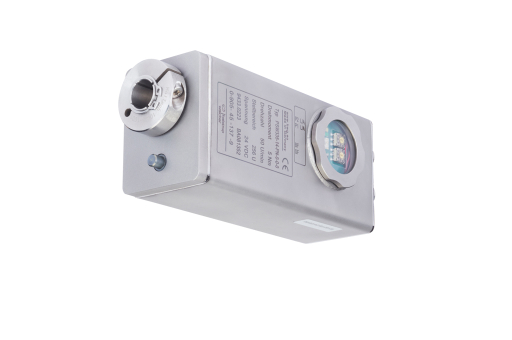

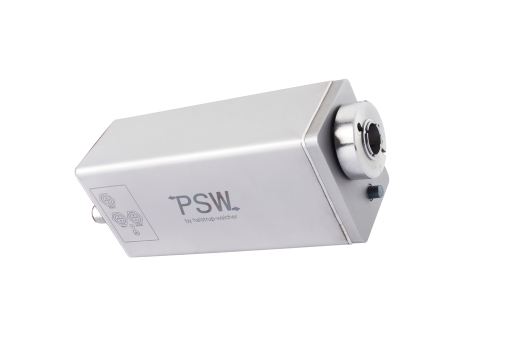

PSW 33x-14

Intelligent positioning system with protection class IP68 in stainless steel

Specific features

• Positioning system with absolute measuring system, without battery
• Galvanic separation of motor and control unit prevents the control unit from being affected by any EM interference in the motor
• Easy mounting with hollow shaft possible (also available with solid circular shaft)
• Absolute encoder eliminates the need for reference runs during system setup and installation of replacements
• Easy address assignment directly on the device using integrated address switches (not for IO-Link)

• Manual disconnecting lever permits manual disconnection of the gearbox

• Regulation of the current torque prevents overloading and unnecessary run aborts

• Strong breakaway torque enables safe start-up even after an extended standstill
• Intelligent running behaviour. Recognises the difference between obstacles and dirt
• Spindle offset run: Excludes inconsistencies due to lash in the spindle.
• Condition monitoring of supply voltage, drag error (permits optimum adjustment of current position), power consumption and torque
• Supplied with 2nd data bus connection and address switches as standard (not for IO-Link)

Options

• Cover cap for the connection socket can be supplied on request
• Optionally integrated brake
• Optionally with 14 mm solid shaft
• NRTL+CE certification optional (standard CE)
